Precise cell acquisition within the microscopic field: AI-enabled targeting and sorting of specific cells
Fully visualized cell sorting process
Non-destructive sorting and collection of single cells
Intelligent obstacle avoidance

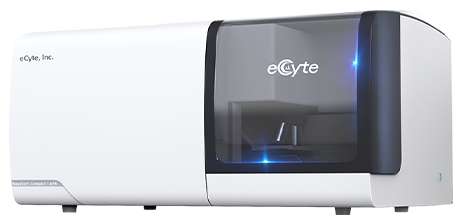

EasySort Compact is a standalone instrument equipped with an integrated brightfield / fluorescent microscope for cell visualization and sorting. It features precise cell sorting, reliable encapsulation of target cells into microdroplets, and minimal impact on biological activity of sorted cells. EasySort Compact provides a simple and complete solution for single-cell sorting into 96-well microtiter plate.
EasySort Compact controls the movement trajectory of single cells via optical tweezers, and encapsulates each target cell into a microdroplet, enabling downstream single-cell sequencing or cultivation. EasySort Compact is compatible with a wide range of cells, including bacterial, archaeal, fungal, plant, animal, and human cells.
Cell sorting is carried out in an aqueous environment, minimizing impact on cell viability and genome integrity.
EasySort Compact sports a highly visualized workflow, allowing users to observe cell phenotype information and fluorescence signals under 10x/50x microscopic imaging.
With a cutting-edge AI algorithm, EasySort Compact can automatically identify target cells with desired phenotype(s), including cell size, shape, and fluorescence signal, enabling a fully automated intelligent cell sorting workflow.
Intelligent obstacle avoidance capability significantly reduces manual intervention and improves efficiency. Minimal training is needed for proper operation.
| Sample Type | Isolated strains / fluorescent cells, human cells, environmental, marine, and soil microbial samples |
| Detection mode | Brightfield or fluorescence (Center wavelength of the excited light: 380 nm, 480 nm, 550 nm) |
| Cell Size | 0.5-50 μm |
| Sample Requirements |
Optimal loading concentration: 106 to 107 cells/mL Recommended volume: ≥ 10 μL |
| Sorting Environment | Aqueous environment |
| Cell Collection | 96-well microtiter plate |
| Sorting Speed | 30 min per 96-well microtiter plate |
| Dimensions (W × D × H) |
745 × 501 × 402 mm |
